Seika ecorator vertical diffuser for waste water treatment
SEIKA ECORATOR
SEIKA Ecorator is a high performance line of diffusion pipes for wastewater treatment designed and engineered in Japan since 2008.
SEIKA Ecorator provides stabilized air supply with excellent stirring capacity and clog-resistant design. Therefore, it is suitable for difficult wastewater treatment such as for paper-mill, textile and food factories.
We have the knowledge and experience to successfully introduce SEIKA Ecorator to your plant/factory. SEIKA Ecorator is introduced to many customers mainly in Japan and Southeast Asia.
If you need it, don't hesitate to contact us.
SEIKA Ecorator provides stabilized air supply with excellent stirring capacity and clog-resistant design. Therefore, it is suitable for difficult wastewater treatment such as for paper-mill, textile and food factories.
We have the knowledge and experience to successfully introduce SEIKA Ecorator to your plant/factory. SEIKA Ecorator is introduced to many customers mainly in Japan and Southeast Asia.
If you need it, don't hesitate to contact us.

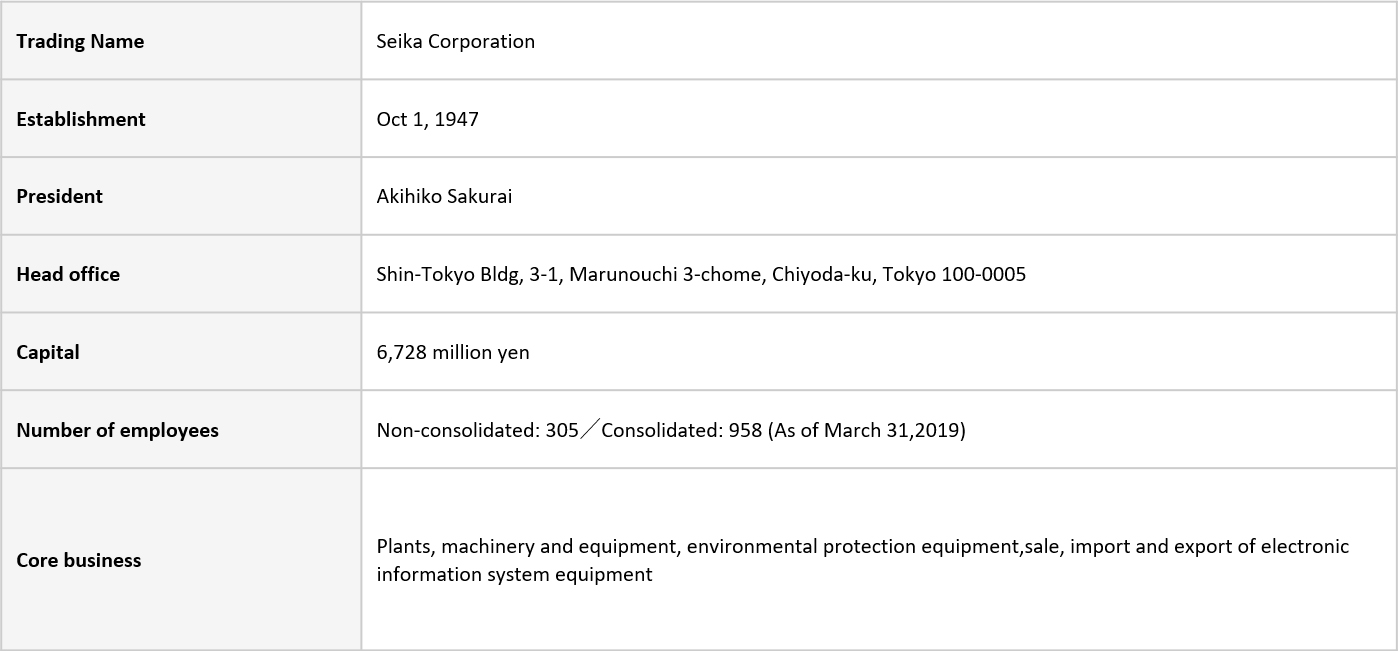

Corporate Profile
Product
SEIKA Ecorator line is consisted of 2 models ECO-1000 and Ecorator Jr. We propose the optimal model and number of units according to the destination and purpose.
ECO -1000
Material | PP dan SUS304 |
Connector | JIS 10K 40A (Flange) |
Weight | 4 Kg |
Capacity | 0.7 ~ 1.4 m3/min |
Ecorator Jr (Eco Jr)
Material | PP |
Connector | 20A (Flange) |
Weight | 0.4 Kg |
Capacity | 0.15 ~ 0.3 m3/min |
Technology
1
Due to its unique internal structure, fine bubbles are generated and stirring vigorously.
2
The air discharge section has a large cross-sectional area that prevents clogging.
3
Maintenance-free and having long life compared to other diffusers.

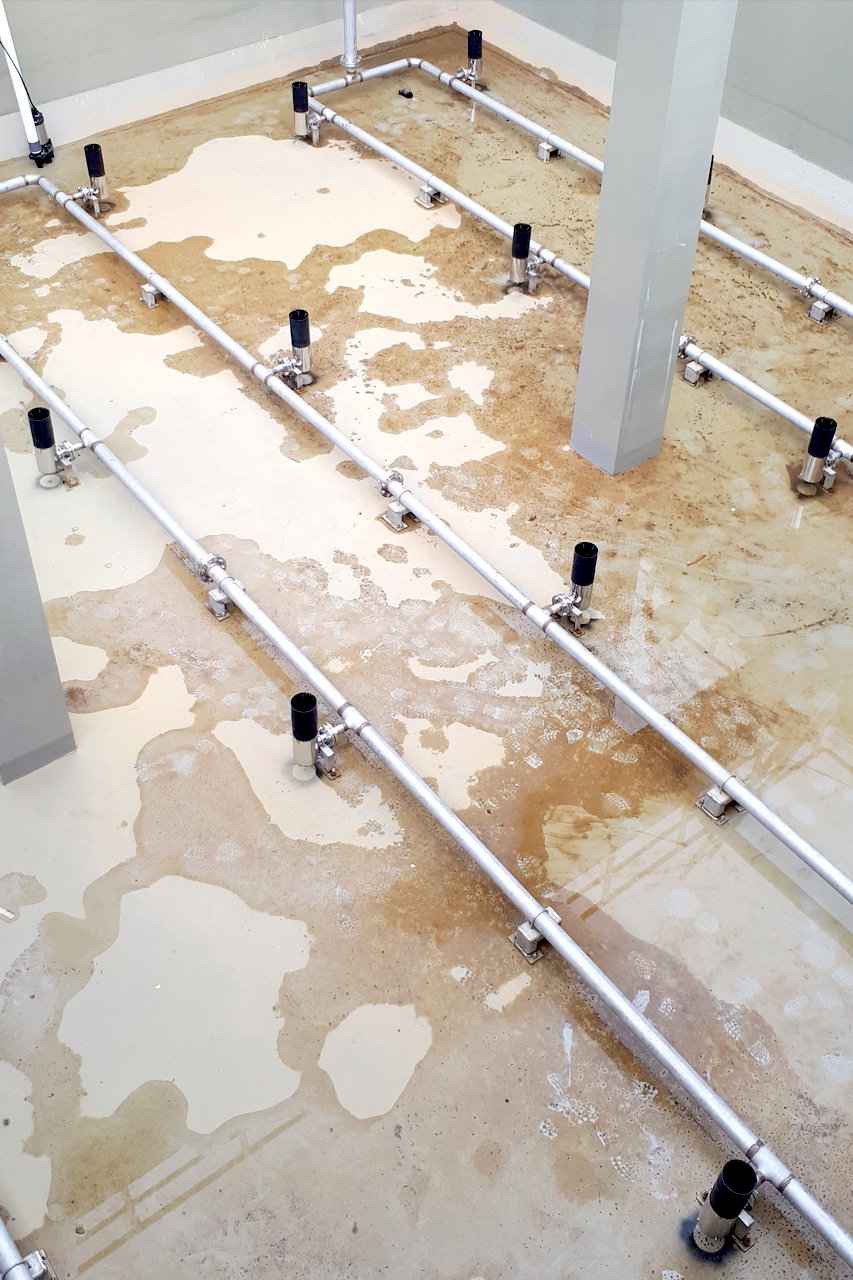

The work system of the seika ecorator gets oxygen supply, breaks down the bubbles / bubbles into microApplication of air and vacuuming the mud from the bottom of the WWTP aeration tank / pond
Feature Comparison
Type | SEIKA Ecorator "ECO-1000" | Disk diffuser |
Image | ||
Lifetime | Long term | Short term |
Clogging (Maintenance ) | Clog-Free, No maintenance | Inevitable |
Dead space | No accumulation of sludge | Sludge accumulation on the tank bottom |
Power consumption | High efficiency thanks to Crog-Free | Low efficiency because of clogging and rubber tear |
Installation and piping | Fewer pipes reduce initial cost | Piping cost is high due to use of many pipes |
Material | Polypropylene+SUS304 (No corrosion) | EPDM or Silicon |
